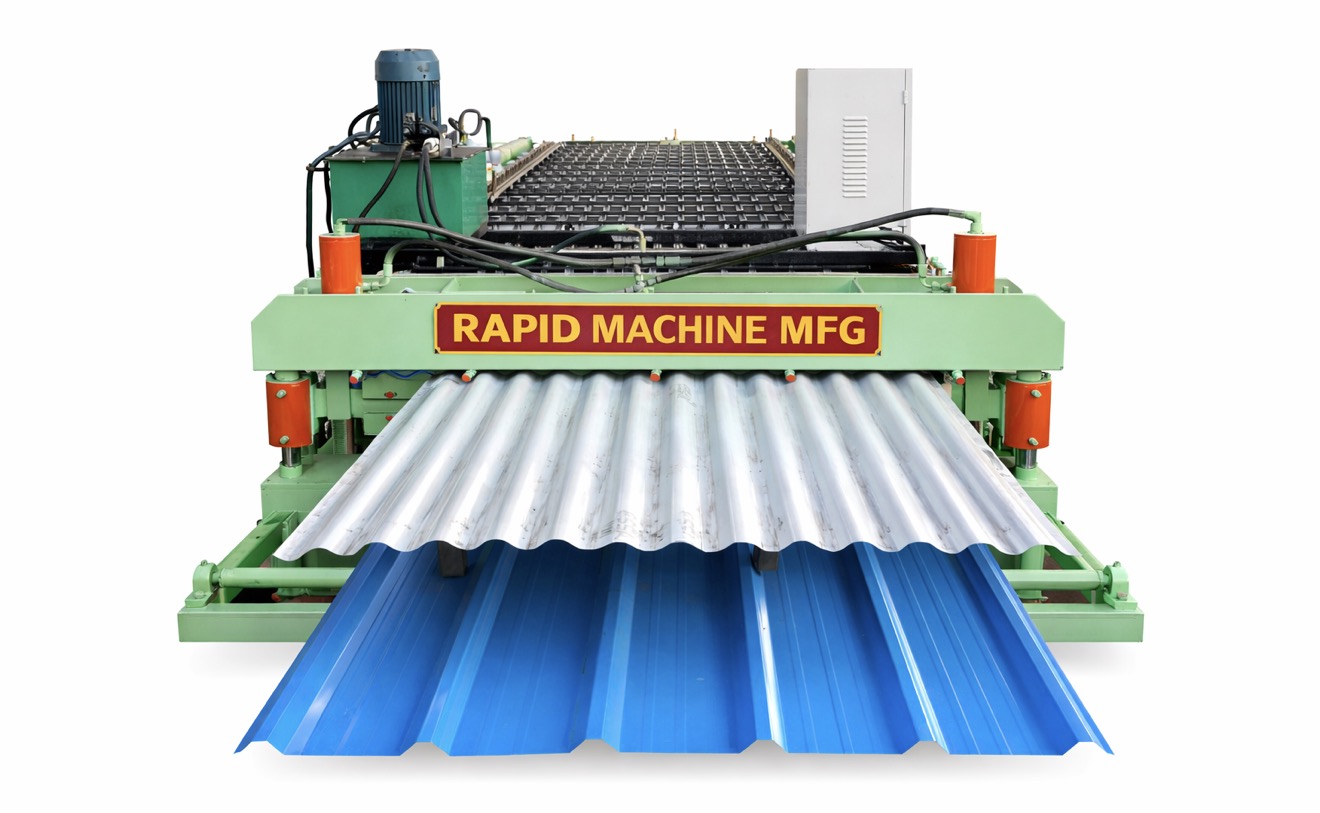

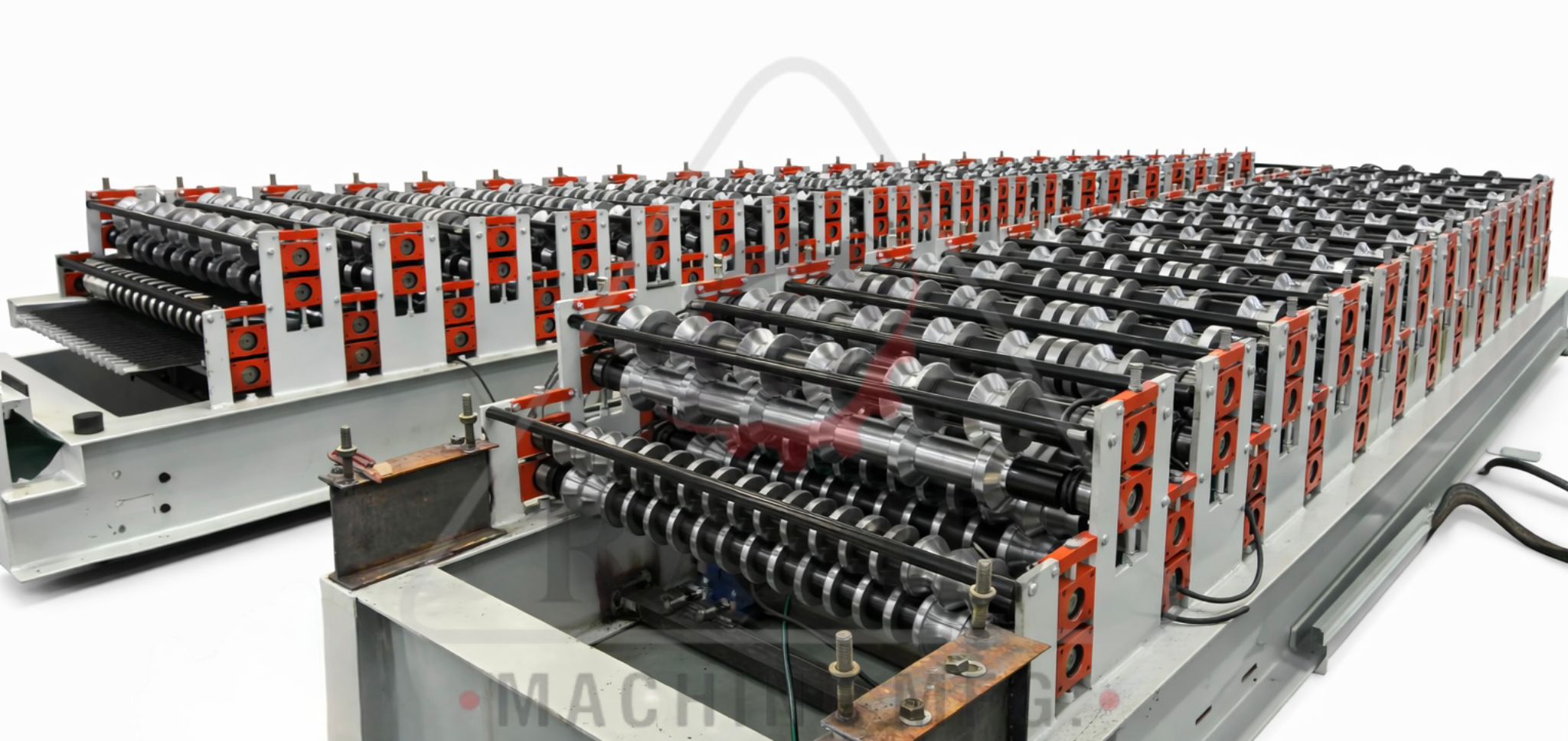

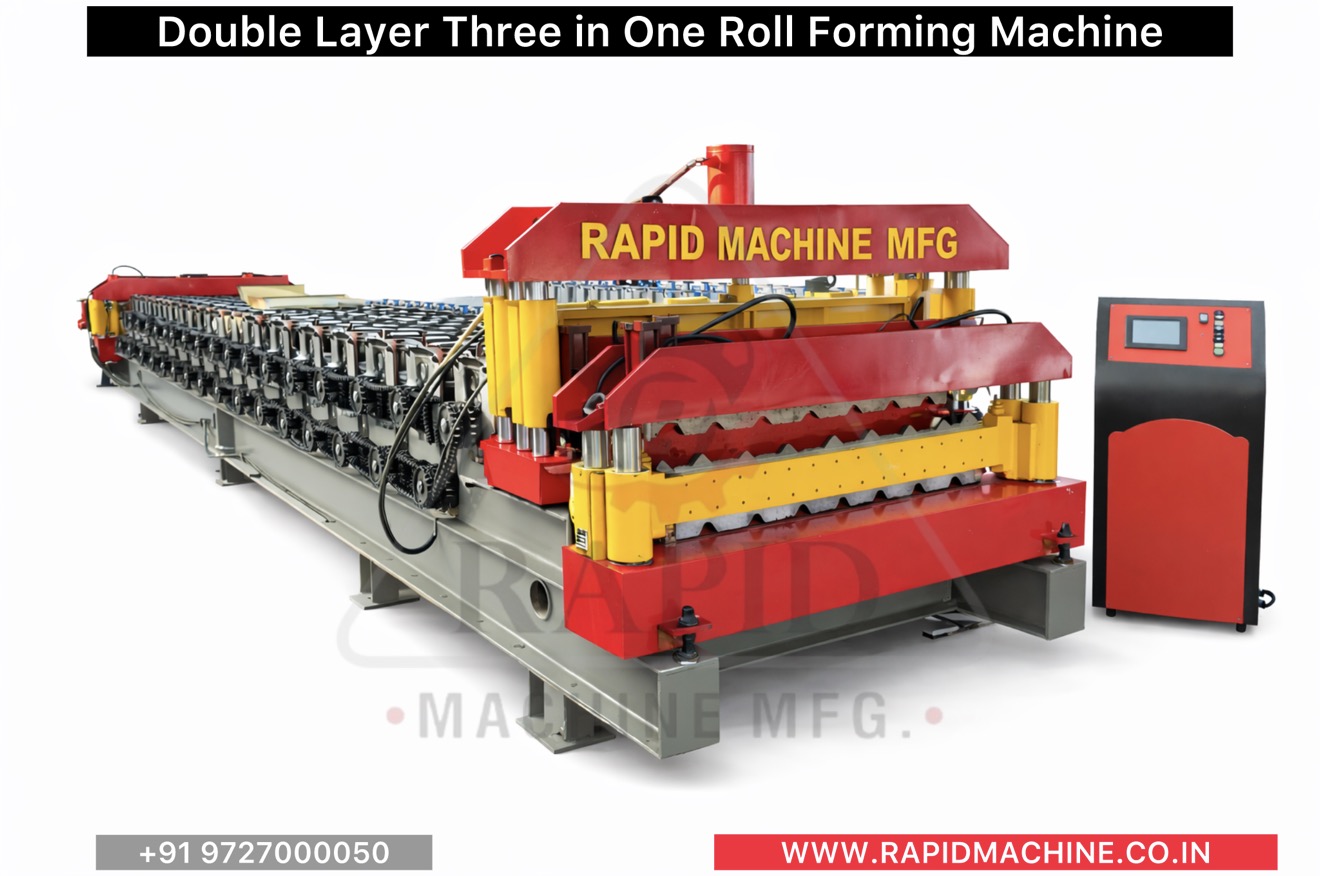

Double Layer Roll Forming Machine – High Speed Automatic
High performance double layer roofing sheet roll forming machine designed to produce two different profiles in one machine. Ideal for manufacturers seeking space saving, cost efficiency and high productivity.
Product Description
Technical Specifications:
• Coil Width: 1220 mm / 1440 mm / Customised

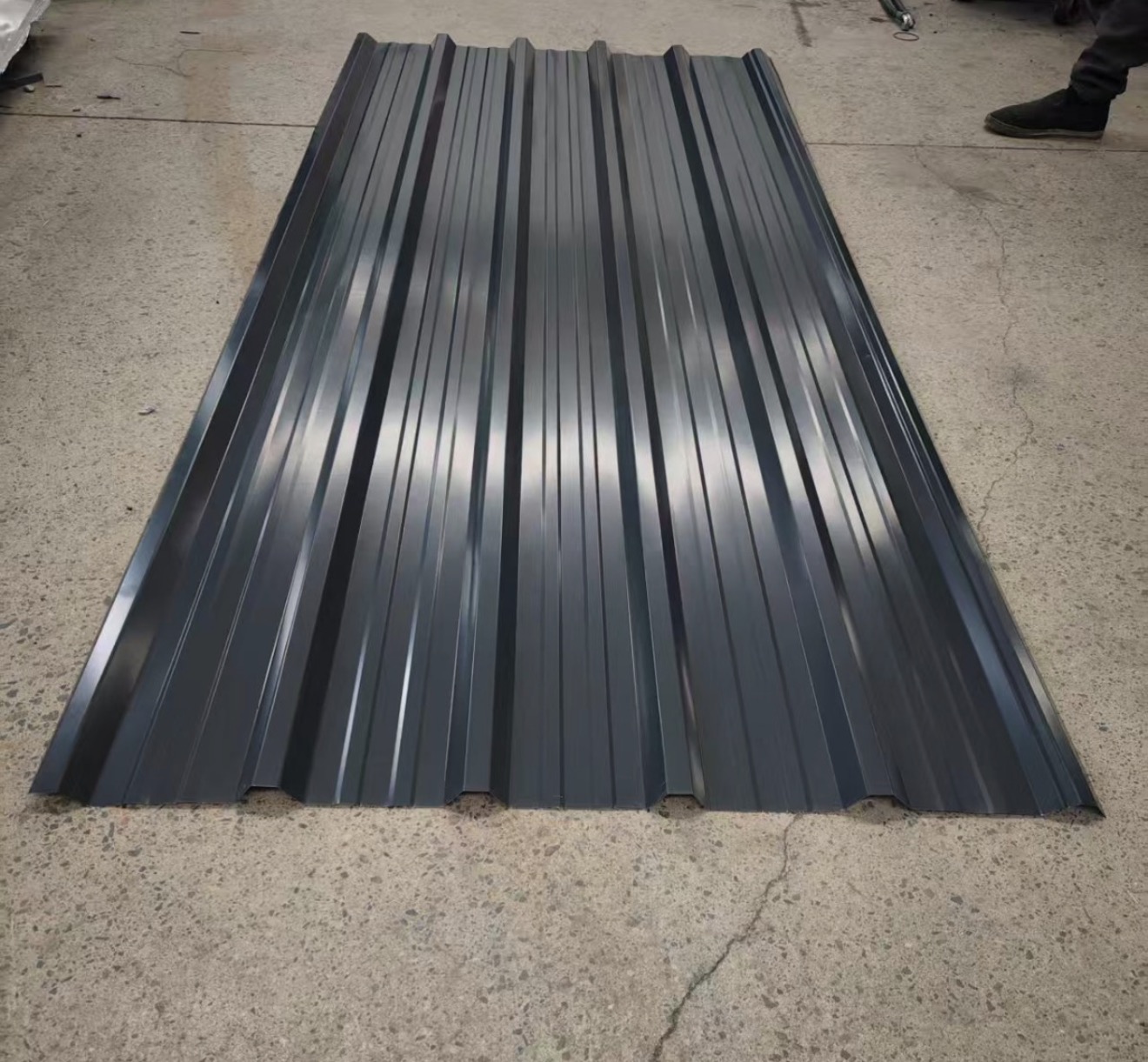

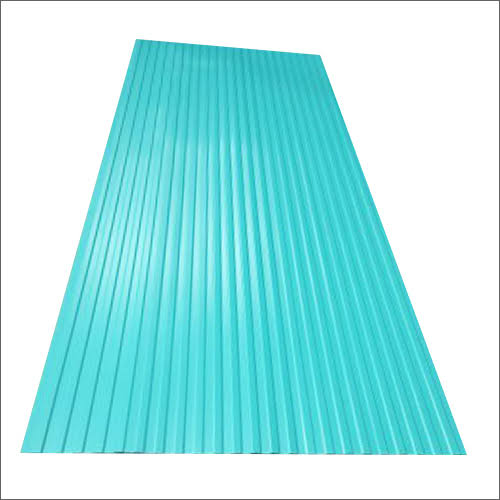

• Profiles: Corrugated + Trapezoidal
• Material: PPGI / PPGL / GI / Aluminium
• Thickness Range: 0.3 – 0.8 mm
• Production Speed: 12 – 30 m/min
• Number of Stations: 12 – 25 stations ( As per Requirement )
• Roller Material: EN31 / Cr12 / #45 hardened steel ( Heating Treatment )
• Shaft Material: EN8 / EN19
• Shaft Diameter: 80 mm ( Total Solid Shaft )
• Control System: PLC with HMI (Delta / Siemens optional)
• Cutting System: Hydraulic cutting
• Decoiler Capacity: 5 Ton / 10 Ton / 15 Ton optional
• Drive Type: Chain drive / Gearbox optional
• Machine Structure: Heavy duty fabricated body
Key Features:
• Two profiles in one machine (cost saving solution)
• Space saving design (ideal for compact factories)
• High precision sheet forming
• Easy profile switching system
• Fully automatic PLC control
• Strong and vibration-free operation
• Low maintenance and long life
• Custom profiles available
Rapid Machine MFG presents advanced single layer roofing sheet roll forming machines engineered for high precision, speed and durability. Available in 1220 mm and 1440 mm variants, As per requirement these machines are widely used for manufacturing corrugated and trapezoidal roofing sheets for industrial, commercial and infrastructure applications.
Our machines are built with heavy duty structure, high grade rollers and advanced PLC automation system ensuring smooth operation and consistent output. Compared to standard machines in the market, our design offers higher production efficiency, better profile accuracy and lower maintenance.
The machine supports various materials such as PPGI, PPGL, GI and aluminium coils, making it suitable for diverse applications. We also provide complete solutions including installation, training and after-sales support worldwide.
This machine is ideal for roofing sheet manufacturers looking for reliable, high performance and long life equipment with strong ROI.
